Products: Motor Fan PEOGEOUT 405

Back

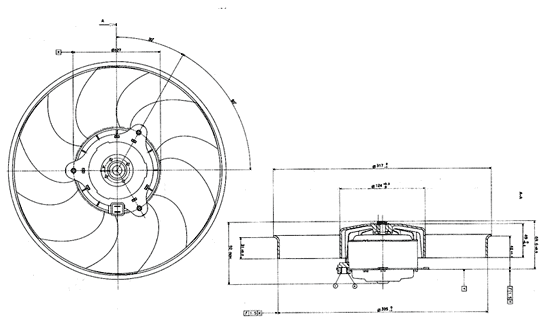

	PEUGEOT 405 G.M.V ( 400158 F.G.I ) MOTOR TYPE : 8120 ( PEUGEOT ) [200 Watt] FAN : ( 305 /317 * 6BLADES ) PPGF30 % LIMIT NOISE ACCEPTABLE : 70 db STANDARD : PSA A100270 PERFORMANCE SUPPLY VOLTAGE: 12v NOMINAL SPEED : 2800rpm (13.5v) Free Air current : 17 A( MAX ) [13.5v] MAX SATIC UNBALANCE : 70gr.mm MAX DYNAMIC UNBALANCE : 200gr,mm ROTATING DIRECTION: CLOCK-WISE MASS: 2000 gr

for High Quality (PDF file), click here
